Molecular Distiller Glass AYAN-F60

Molecular Distiller Glass AYAN-F60

Overview:
Application Industrial: Distillation                                                  Power source: Electric
Process: Vacuum Distillation                                                        Place of Origin: Zhejiang, China
Dimension: Customizable                                                            Certification: CE, ISO
Voltage: 220V/110V                                                                     Power (W): 120

Product Description:
Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.



Technical Feature
Short residence time (separation is finished in seconds, instead of hours)
Very lower operation pressure ensures very low distillation temperature and also a very gentle distillation
Various size options (60mm, 80mm, 100mm, 150mm and etc.) for different throughput
Turkey package which is plug-and-play, technical supports available
The system can be upgraded for continuous distillation process
Industrial grade (>=200mm) products are available upon request


Working Principle
Molecular distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.



How to support?
We pay close attention to the quality configuration and after sales support to our lab equipment!
1. Our products certified by ISO9001 quality management system and CE
2. All products have to be tested by 3 times before packing and delivery
3. We provide free training, and 7*24 hour online technical support
4. Each machine will deliver with full documents package to guarantee that customers won’t meet any problems. Also, we provide 12 months guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time during guarantee period.


Model Number AYAN-F60
Internal Diameter 60mm
Effective evaporation area 0.06㎡
Condensing Area 0.1㎡
Feeding funnel Volume 1L (Customizable)
Processing Flow 0.1- 2 L./H
Motor Power 120W
Max. Speed 450r/min
Light component collection bottle 1L (Customizable)
Reorganization into collection bottle  1L (Customizable)
Cold Well Yes
Selection of external Condenser Optional
Cooling device Yes
Vacuum degree <10Pa
Heating temperature Room temperature to 200°C

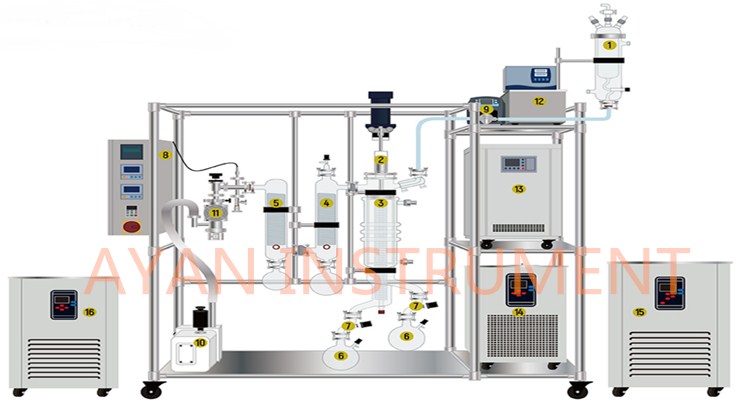

1. Jacketed feeding flask with manual feeding valve
2. Magnetic drive rotation with motor

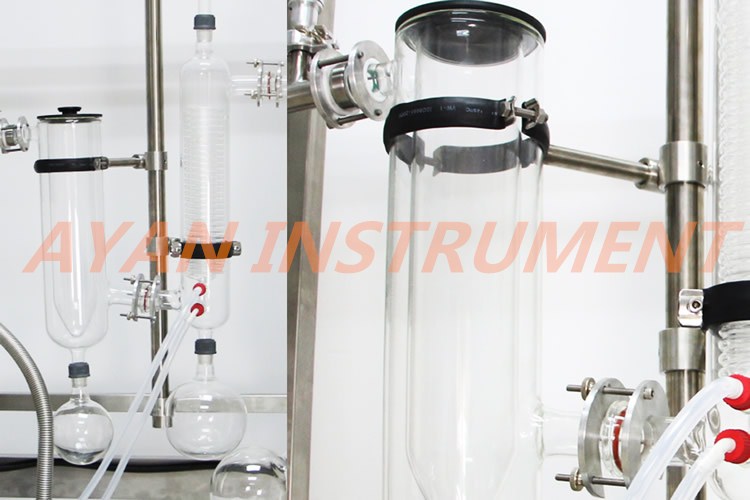

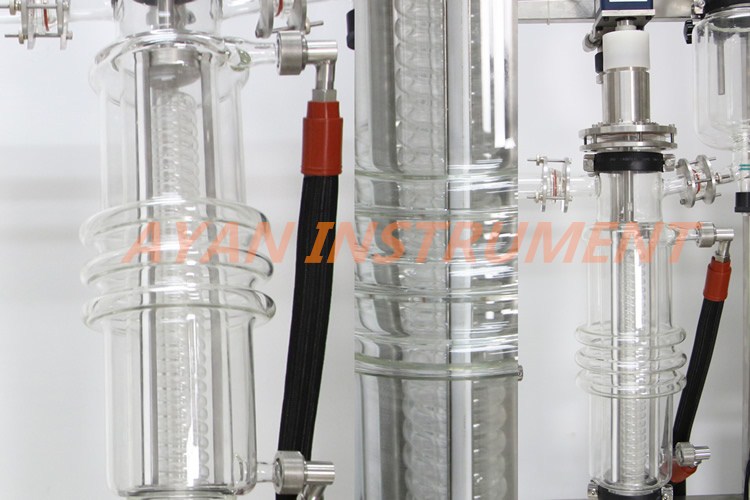

3. Jacketed glass barrel with Internal condenser

4. External condenser for collecting terpenes (optional)

 5. Cooling coils cold trap (optional: Dry ice cold trap)

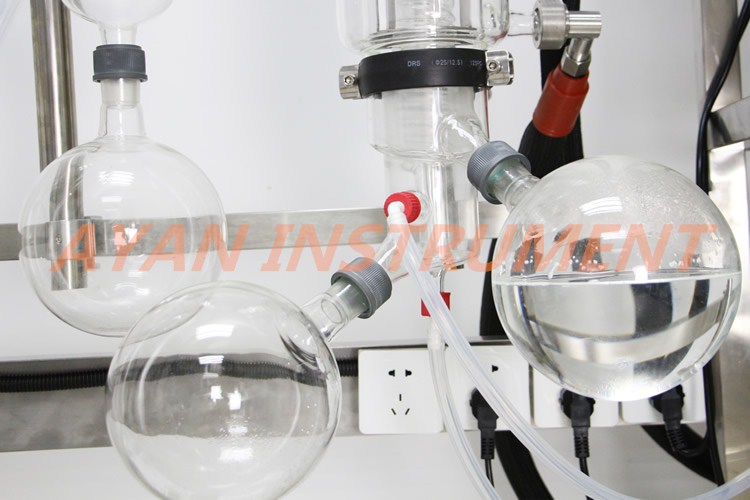

 6. Receiving flasks (Distillate and Residue)
 7. Continues collection module (Distillate and residue)
8. Control System
9. Gear Pump for automatic and continuous feeding (Optional)
10. Vacuum Pump
11. Diffusion pump (Optional)
12. Heating circulator for jacketed feeding vessel
13.  Heating circulator for jacketed glass barrel
14. Heating/cooling circulator for internal condenser
15. Cooling circulator for external condenser (Optional)
 16. Cooling circulator for cooling coils cold trap (Optional)
