Overview
Application Industrial: Distillation Power source: Electric
Process: Vacuum Distillation Place of Origin: Zhejiang, China
Dimension: Customizable Certification: CE, ISO
Voltage: 220V/110V Power (W): 120
Product Description:
Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.
Technical Feature
Short residence time (separation is finished in seconds, instead of hours)
Very lower operation pressure ensures very low distillation temperature and also a very gentle distillation
Various size options (60mm, 80mm, 100mm, 150mm and etc.) for different throughput
Turkey package which is plug-and-play, technical supports available
The system can be upgraded for continuous distillation process
Industrial grade (>=200mm) products are available upon request
Working Principle
Molecular distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.
How to support?
We pay close attention to the quality configuration and after sales support to our lab equipment!
1. Our products certified by ISO9001 quality management system and CE
2. All products have to be tested by 3 times before packing and delivery
3. We provide free training, and 7*24 hour online technical support
4. Each machine will deliver with full documents package to guarantee that customers won’t meet any problems. Also, we provide 12 months guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time during guarantee period.
Application Industrial: Distillation Power source: Electric
Process: Vacuum Distillation Place of Origin: Zhejiang, China
Dimension: Customizable Certification: CE, ISO
Voltage: 220V/110V Power (W): 120
Product Description:
Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.
Technical Feature
Short residence time (separation is finished in seconds, instead of hours)
Very lower operation pressure ensures very low distillation temperature and also a very gentle distillation
Various size options (60mm, 80mm, 100mm, 150mm and etc.) for different throughput
Turkey package which is plug-and-play, technical supports available
The system can be upgraded for continuous distillation process
Industrial grade (>=200mm) products are available upon request
Working Principle
Molecular distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.
How to support?
We pay close attention to the quality configuration and after sales support to our lab equipment!
1. Our products certified by ISO9001 quality management system and CE
2. All products have to be tested by 3 times before packing and delivery
3. We provide free training, and 7*24 hour online technical support
4. Each machine will deliver with full documents package to guarantee that customers won’t meet any problems. Also, we provide 12 months guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time during guarantee period.
| Model Number | AYAN-F150 |
| Internal Diameter | 150mm |
| Effective evaporation area | 0.25㎡ |
| Condensing Area | 0.45㎡ |
| Feeding funnel Volume | 2L (Customizable) |
| Processing Flow | 1.0-10.0 L./H |
| Motor Power | 120W |
| Max. Speed | 450r/min |
| Light component collection bottle | 3L (Customizable) |
| Reorganization into collection bottle | 3L (Customizable) |
| Cold Well | Yes |
| Selection of external Condenser | Optional |
| Cooling device | Yes |
| Vacuum degree | <10Pa |
| Heating temperature | Room temperature to 200°C |

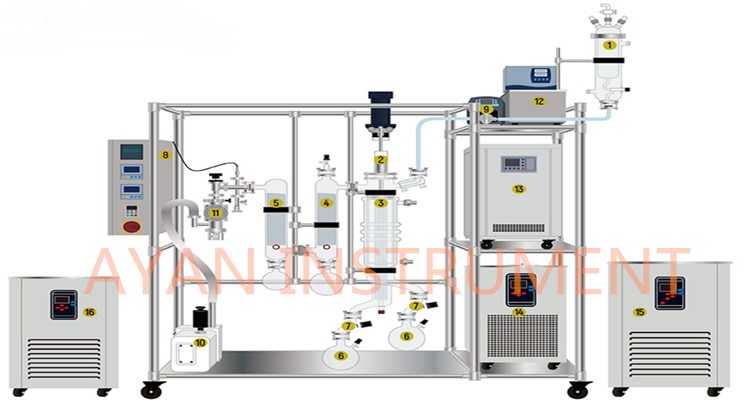

Main Distiller

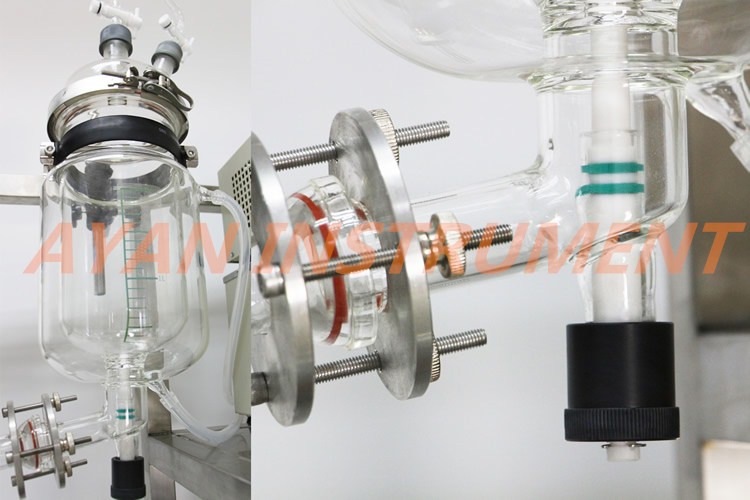

1. Jacketed feeding flask with manual feeding valve
2. Magnetic drive rotation with motor

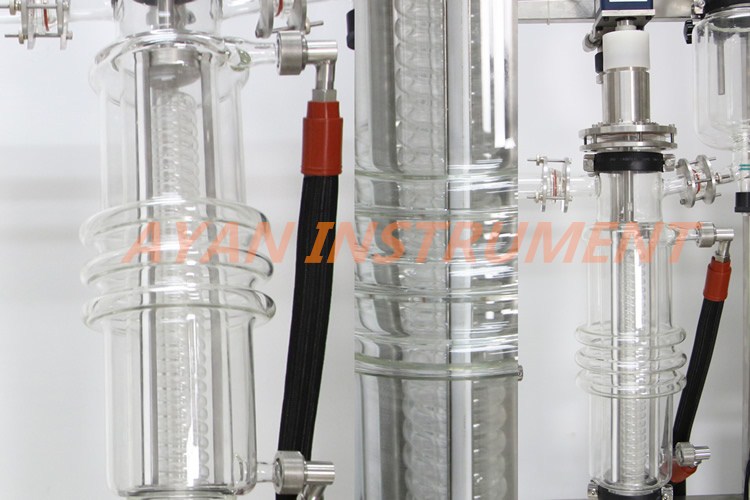

3. Jacketed glass barrel with Internal condenser

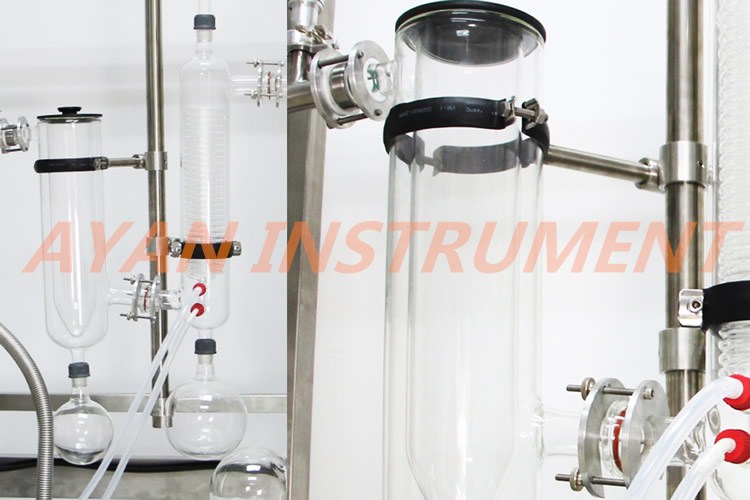

4. External condenser for collecting terpenes (optional)
5. Cooling coils cold trap (optional: Dry ice cold trap)

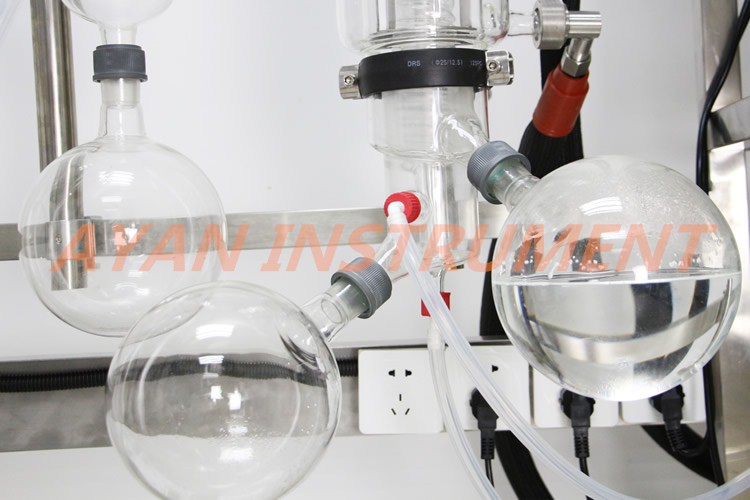

6. Receiving flasks (Distillate and Residue)
7. Continues collection module (Distillate and residue)
8. Control System
9. Gear Pump for automatic and continuous feeding (Optional)Vacuum System
10. Vacuum Pump
11. Diffusion pump (Optional)Heater & Chiller
12. Heating circulator for jacketed feeding vessel
13. Heating circulator for jacketed glass barrel
14. Heating/cooling circulator for internal condenser
15. Cooling circulator for external condenser (Optional)
16. Cooling circulator for cooling coils cold trap (Optional)
