Applications:
X-series large scale rotary evaporator is mainly used for small-scale test, pilot test and production in biological, pharmaceutical, chemical, food and other fields. Same as the large capacity and large diameter rotary evaporator, the solution can be rapidly diffused and evaporated by placing it in a water bath and rotating and heating it at the same time. And the product is usually equipped with vacuum pump and cooler.
Features:
Technical Requirements
X-series large scale rotary evaporator is mainly used for small-scale test, pilot test and production in biological, pharmaceutical, chemical, food and other fields. Same as the large capacity and large diameter rotary evaporator, the solution can be rapidly diffused and evaporated by placing it in a water bath and rotating and heating it at the same time. And the product is usually equipped with vacuum pump and cooler.
Features:
- Condenser: vertical double condenser tubes, large condensing area, high recovery efficiency. Two condenser designs are optional.

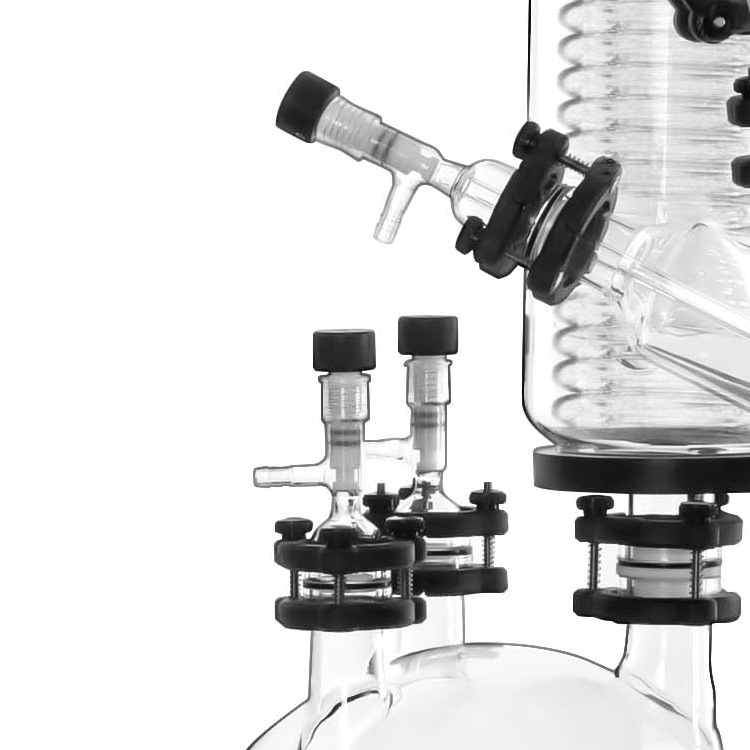

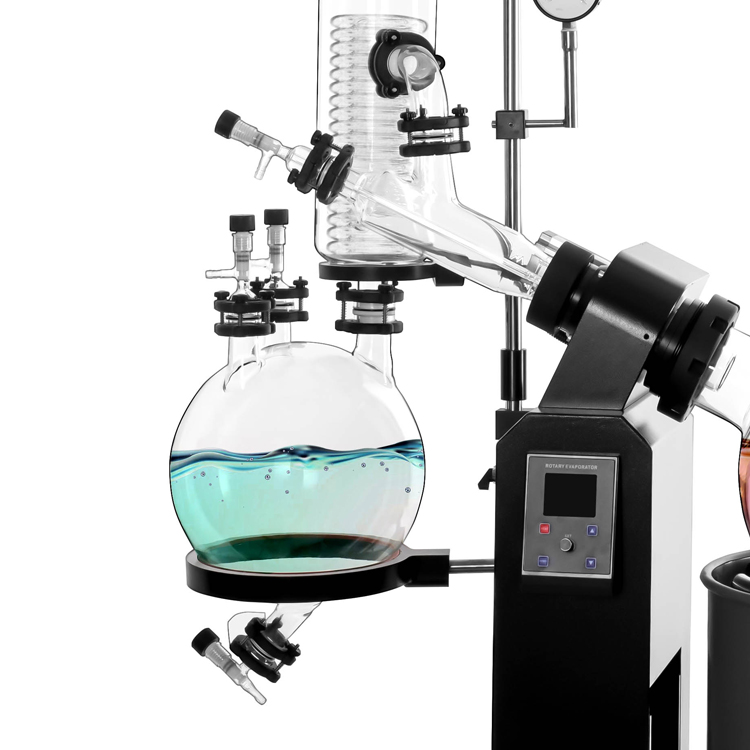

- Receiving bottle: two vacuum valves designed without affecting the overall vacuum, rapid pressure relief and discharge.Two receiving bottle designs are optional.
- Buffer tube: prevents accidental solution from rushing into the receiving bottle.
- Check valve: continuous collection, do not affect the vacuum of the system, improve work efficiency.
- Electric lifting water/oil bath: SS304 heating bath pan, easy to operate.Bottom with discharge valve.
- Quick open fixture: quick open fixture, easy to install and remove.
- Rotary seal: modified ptfe rotary seal (in direct contact with the material) for better corrosion resistance.
- Belt pulley with knob: universal belt pulley, easy to move, can be fixed.
- Heat shield: heat shield is optional.Avoid scalding when heating in the pan.
- Bottle rack/rack: multi-function stainless steel bottle rack is optional, single person can also operate.
Technical Requirements
| 1 | Materials | All glass parts are made of GG-17 high borosilicate glass.The seals are made of FTFE material for better corrosion resistance. |
| 2 | Model | 10L¨ 20L¨ 30L¨ 50L¨ 100L¨ |
| 3 | Power | 110V þ 220V/240V ¨ 380V ¨ 460V ¨ |
| 4 | Type | Normal ¨ Anti-explosion ¨ Customizable ¨ |
| 5 | Frequency | 50/60Hz |
| 6 | Phase | Single phase ¨ Triphase ¨ |
| 7 | Rotary power | 180W ¨ 250W þ 370W ¨ |
| 8 | Heating power | 3KW ¨ 6KW ¨ 9KW þ 18KW¨ |
| 9 | Lift type | Automatic lift ¨ Manual lift ¨ |
| 10 |
Function |
The instrument is suitable for extracting solvent or separating mixed solution. Can be used in the following experiments or product production: • Solution concentration; • Recycling of solvent; • Chemical separation; • Vacuum drying and wet solid; • Essential oil extraction and distillation; • Remove solvents from samples efficiently and gently. |
| 11 | Parts surface may be with high temperature, especially the bathtub and rotating bottle surface, do not directly contact with the body, to avoid burns. | |
| Before opening the enclosure for maintenance and repair, be sure to disconnect the power supply of the instrument to avoid electric shock. |
|
型号 Model |
AYAN-X-1010 | AYAN-X-1020 | AYAN-X-1050 |
|
旋转瓶（L） Rotary battle |
10 | 20 | 50 |
|
收集瓶(L) Reciving flask |
5L | 10L | 20L |
|

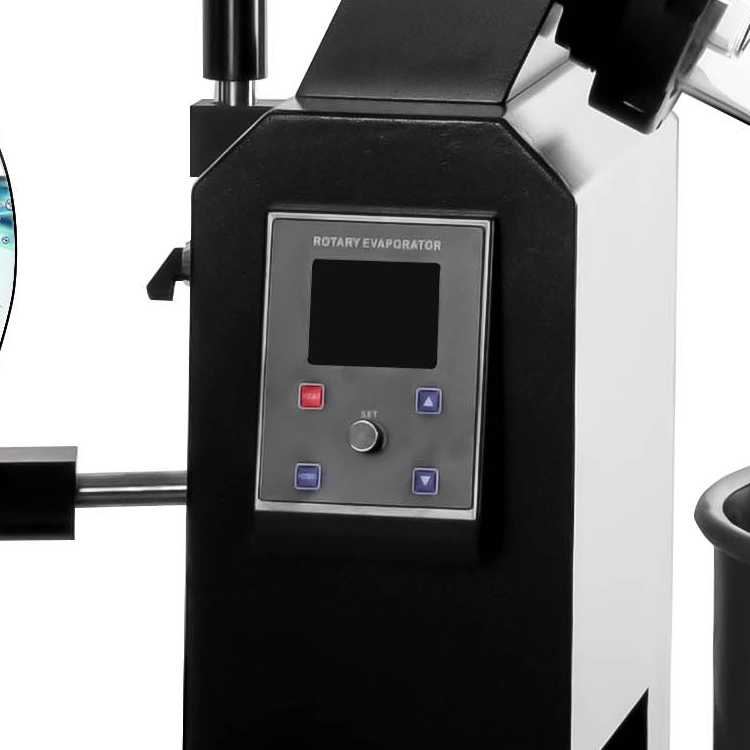

主机调速 Motor control |
数显变频调速 Digital display frequency conversion speed regulation |
||
|
主机转速(r/min) Motor speed |
0-90 | 0-120 | 0-120 |
|
冷凝面积（㎡） Condensing area |
1.5 | 1.5 | 1.5 |
|
蒸发速度（H2O） Evaporation rate |
＞3L/h | ＞5L/h | ＞9L/h |
|
达到真空度（Pa） Vacuum degree |
＜133 | ＜133 | ＜133 |
|
浴锅功率（KW） Bath power |
3 | 3 | 6或9 |
|
主冷凝器 Main condenser |
直径Diameter 120mm 高度 Height 570mm |
直径Diameter 132mm 高度Height 640mm |
直径Diameter 160mm 高度Height 850mm |
|
副冷凝器 Deputy condenser |
直径Diameter133mm 高度Height 500mm |
直径Diameter160mm 高度Height 500mm |
直径Diameter160mm 高度Height 500mm |
|
温控范围及波动（℃） Operating temperature |
室温-99（200）±0.5 Room temperature -99 (200) ±0.5 |
||
|
PTFE组合密封 PTFE sealing |
标配（进口密封件，材质：变性四氟，保证真空度） Standard fitting ( denaturated tetrafluoride, vacuum degree guaranteed) |
||
|
PTFE放料阀 PTFE baiting valve |
标配 Standard fitting |
||
|
真空表 Vacuum meter |
标配 Standard fitting |
||
|
加热锅 Heating kettle |
不锈钢水浴 Stainless steel bath |
||
|
电机 Motor |
标配：250W (选配：370W 防爆电机) （Standard equipment: 250W (optional: 370W explosion-proof motor) |
||
|
变频控制器 Frequency controller |
标配：250W (选配：370W 防爆电机) （Standard equipment: 250W (optional: 370W explosion-proof motor) |
||
|
无油阀加料阀 Oil-free valve feeding valve |
1个50法兰 1 and 50 flange |
||
|
无油阀放气阀 Oil-free valve discharging valve |
2个 50法兰 2 and 50 flange |
||
|
升降功能 Lifting function |
电动升降（升降行程0-200mm） Electric lifting (lifting stroke 0-200mm) |
||
|
接真空的口径 Diameter of the vacuum |
外径 External diameter 12MM |
||
|
接冷凝水的口径 Caliber of condensate |
外径 External diameter 15MM |
||
|
电源（V/HZ） Power |
220/50 | 220/50 | 220/50或 380/50 |
|
包装尺寸（MM） Package size |
1020*540*1220 | 1020*540*1220 | 1180*650*1400 |
|
重量（KG） Weight |
120 | 125 | 145 |
